The BPBIO 320 is an accurate, fully automated and easy-to-use blood pressure monitor. The monitor features a voice-guided, single-step measurement process and an elbow sensor that allows you to be in the ideal position for testing.
These technologies ensure that you follow proper testing protocols each time for accurate readings.
Measures blood pressure by detecting oscillations during inflation. Systolic blood pressure can be recorded without overinflating the cuff higher than the true systolic pressure. This reduces unnecessary pressure the user may feel less pain while measuring.
With the SDK and proper support from the InBody technical team, it is easy to integrate the BPBIO 320 into your data management software and get all your most important data in one place.
The BPBIO 320 is auto-calibrated, space-efficient, and portable for convenient measurement with minimal effort. To enhance sanitary testing conditions, the BPBIO 320 is available with a disposable cuff barrier and contact-free testing guidelines.
With an intuitive design and voice guidance, users can measure their blood pressure in 45 seconds with the touch of a button. Choose from two result receipts with up to four outputs and a test history Result Sheet for easy tracking.
”After I did my research and understood how obesity was tied to hypertension, providing blood pressure monitoring was a no brainer. But I didn’t do it because I didn’t have the technology. When I got introduced to the BPBIO, I thought, 'Wow, another added-value piece I can bring to the table.' It’s user-friendly, stationary, portable, and it doesn’t take up a bunch of space. I can set it up either in the lounge, lobby, etc for the convenience of the employees.
Alex HixonOwner of Rural Mobile Health and Wellness
Stand on the carpet after removing your shoes and wiping your feet with the InBody Tissue. This carpet is made of anti-static material.
Use the BSM-170 stadiometer to find the exact height of the user. This information is needed for accurate body composition testing.

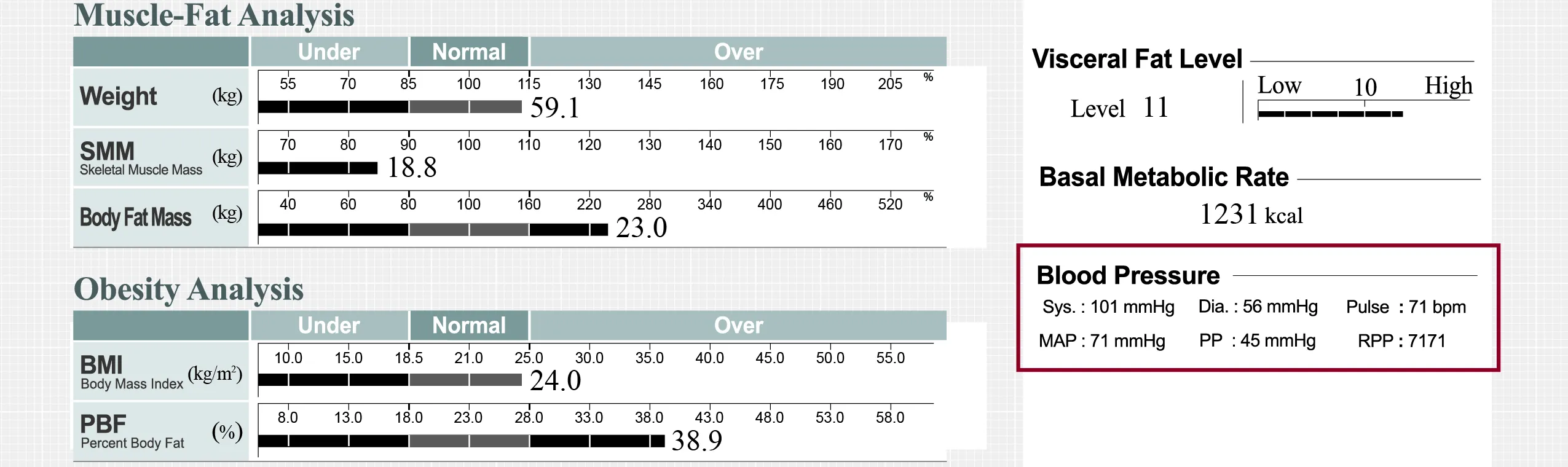

The BPBIO 320 is a stand-alone blood pressure monitor that integrates with your InBody unit to provide biometric and body composition results for your clients.
Users can test with or and without a trained professional. The InBody 570 provides step-by-step instructions for a user to see and hear.
Grab the hand electrodes and stand up straight. Place thumbs on the top of the oval electrodes and wrap fingers around the handle. Extend arms downwards and away from the torso, as shown on the InBody 570’s screen.
Align heels with the rear, round electrodes and point toes forward so the feet align with the sole electrodes. Do not move until the unit provides new directions.
The InBody Result Sheet will automatically print once the 45-second InBody 570 test is complete. Use Lookin’Body Web to upload all InBody Tests to a computer for efficient data management.

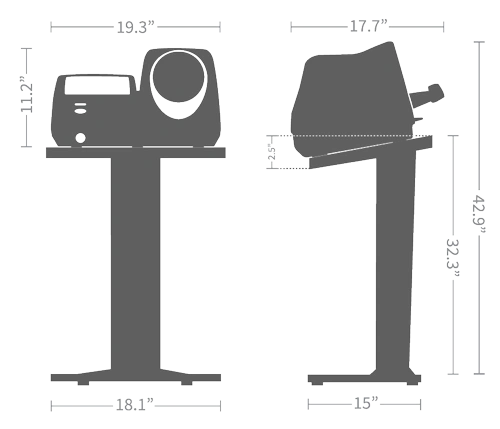

Product Dimensions
450 x 490 x 284 ( L x W x H ) : mm
Stand Dimensions
381 x 460 x 820 ( L x W x H ) : mm
Measurement Method
Oscillometric
Display Unit
1mmHg
Test Duration
45 seconds
Measurement Range
0 – 300mmHg (Pressure)
30 – 240bpm (Pulse)
Product Weight
9 kg
Warranty
2 Year Manufacturer’s Warranty
Power Source
AC 100 – 240V, 50/60Hz
Display Type
7-Segment LED (Systolic, Diastolic, Time, Pulse)
Printer
High-speed thermal printer
Accuracy
± 2mmHG (Pressure), ± 1.5% (Pulse)
Cuff Size
Arm circumference: 18 – 42 cm
Outputs
Systolic Blood Pressure, Diastolic Blood Pressure, Pulse
Dual Safety System
[START/STOP] button: If the air pressure exceeds 300mmHg, the cuff will automatically deflate.
[EMERGENCY] button: The cuff will quickly deflate regardless of the pressure.

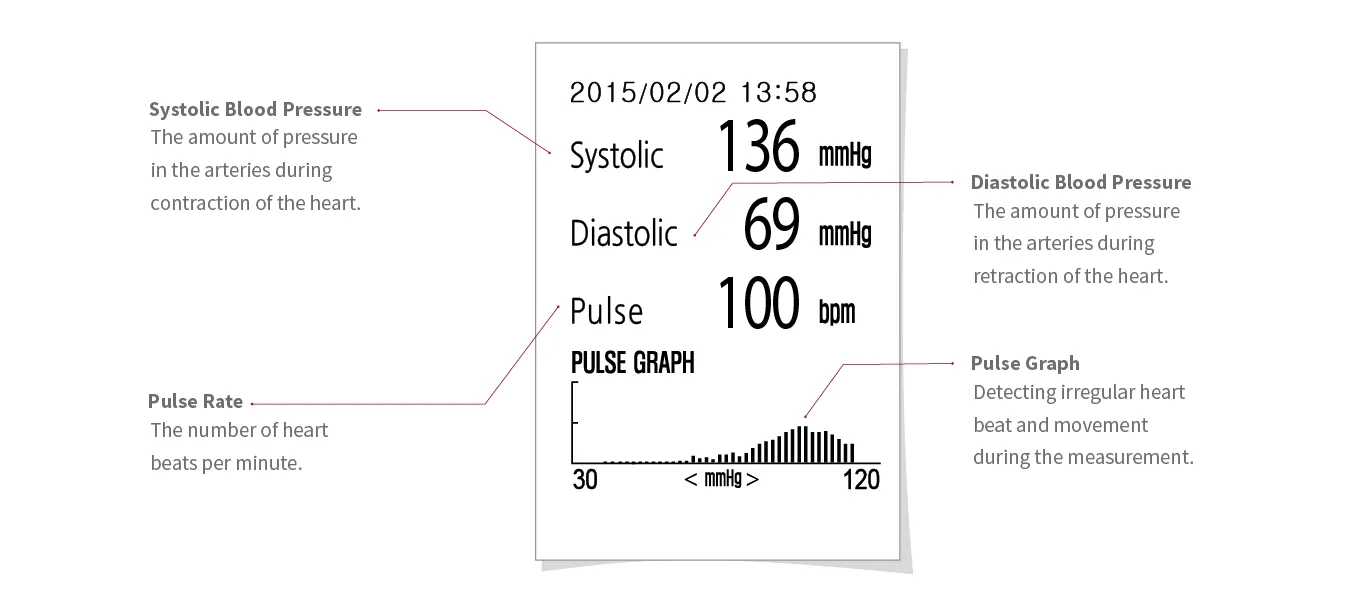

Type of Result Sheets
3-line high-speed printing or graph printing
